Heavy duty quality components, versatile and user friendly, with quality componentry, the HD900 Drilling Rig is an excellent rig for exploration and diamond drilling purposes.

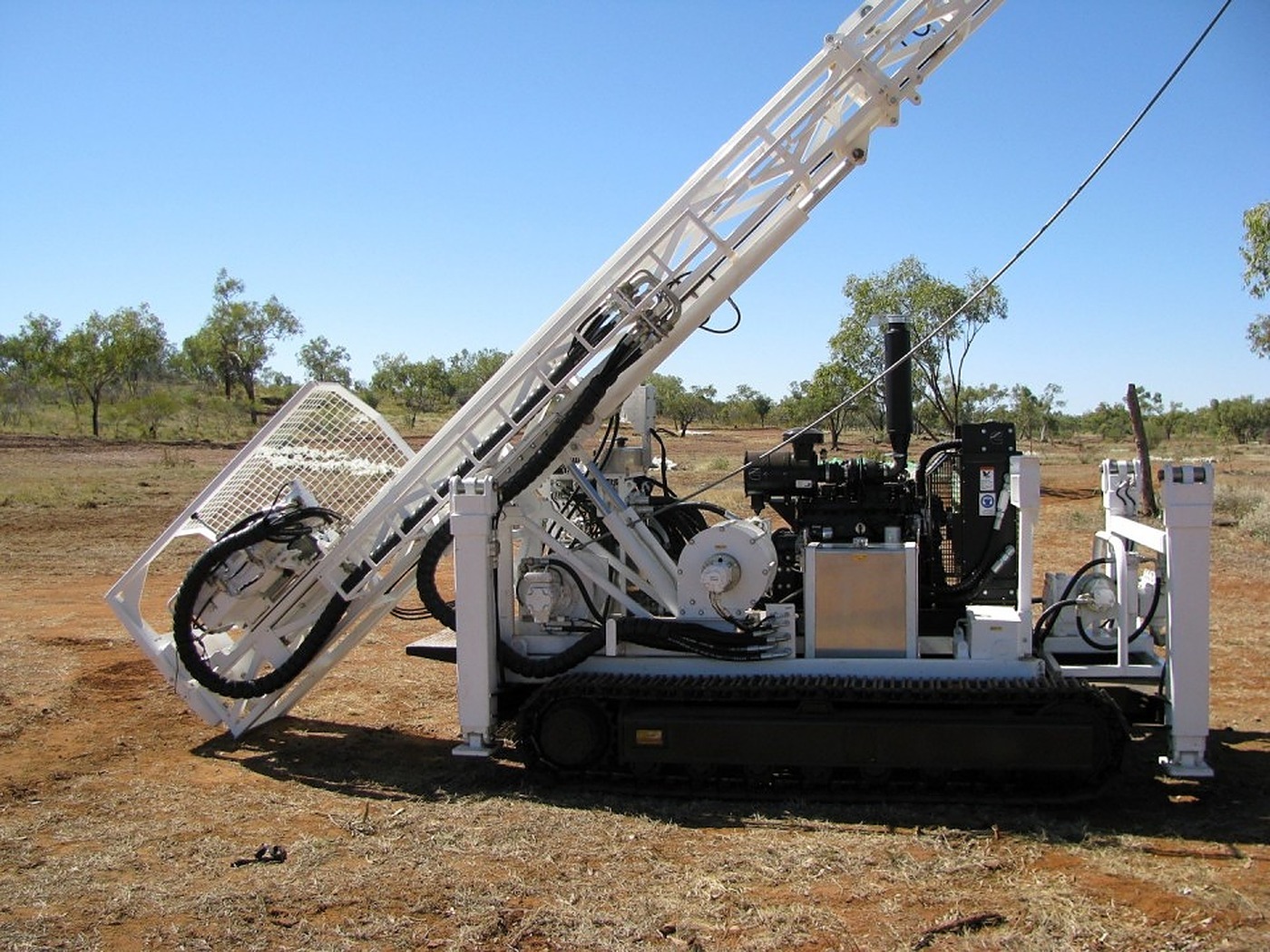

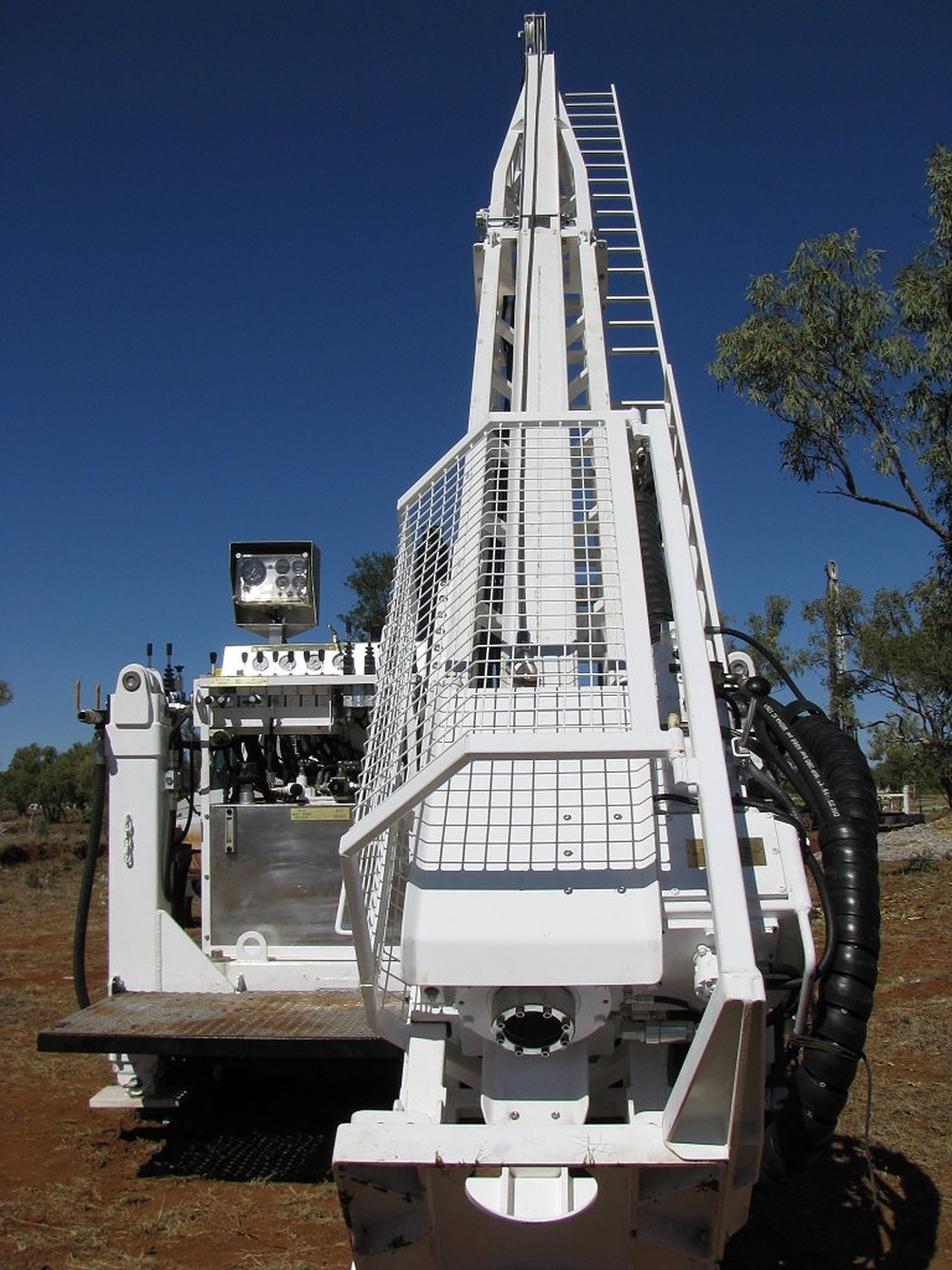

The steel base is set on a two speed, low profile track system and is fitted with four leveling jacks to allow level set up and stability when operating the drilling rig on sloping and uneven ground. The track base is ideal for setting up over pre-collared holes and allows ease of loading on/off transporter trucks.
| Specification | Metric |
|---|---|
| Height | 12310mm (4’5″) |
| Width | 2240mm (7’2″) |
| Length | 4103mm (13’6″) |
| Weight | 9000kg (19841Lbs) |
| Depth Capacity | 1540m (5052′) |
| Rod Pull Length | 6.09m (20′) |
| Max Torque | 5113Nm (3771FtLbs) |
| Max Speed | 1369RPM |
| Drill Rod Size | B-P |
| Main Hoist | 66.72kN (15000Lbs) |
| Feed Ram Stroke | 3.5m (11’8″) |
