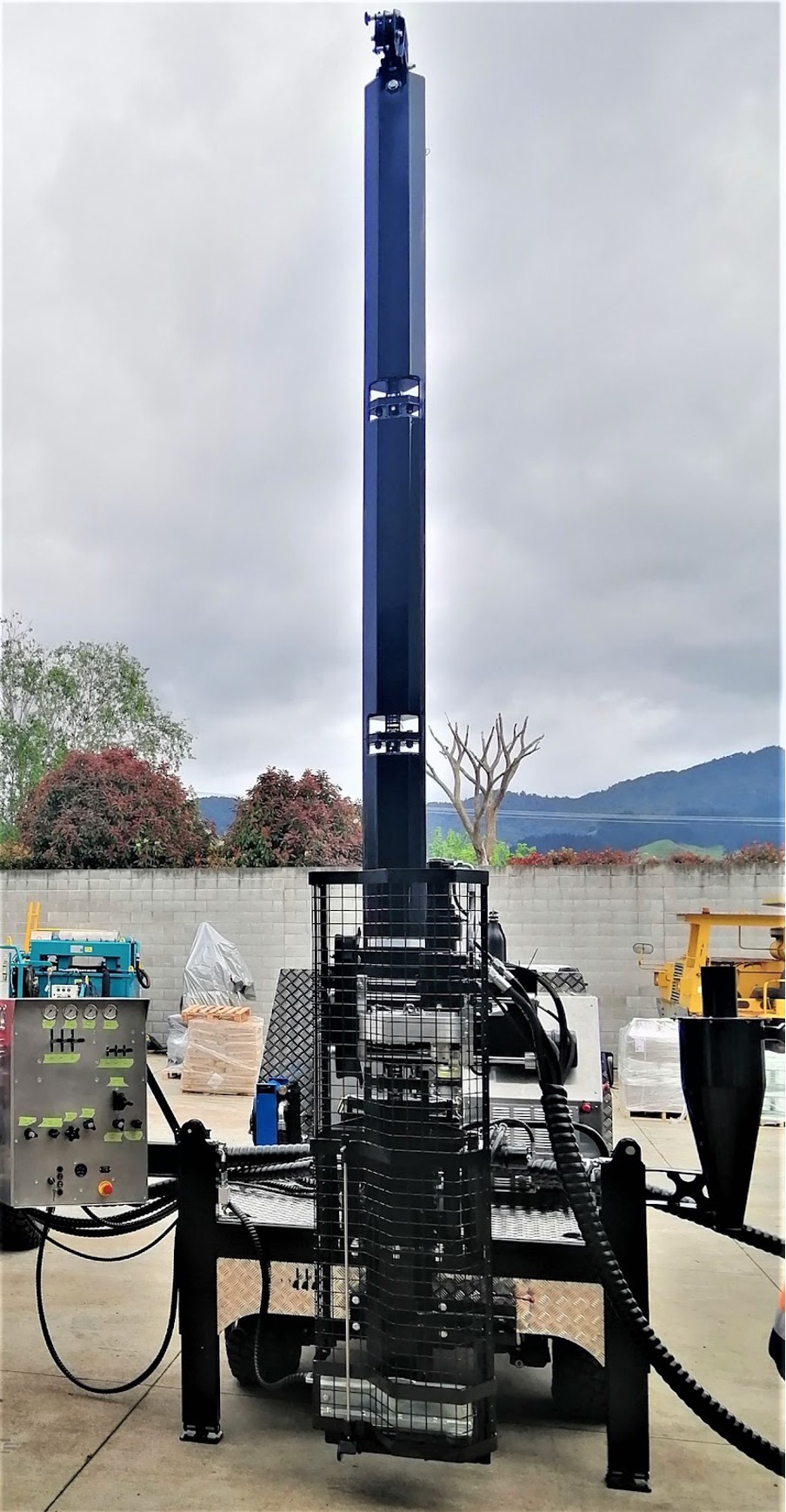

The LT140 is a revolution in exploratory drilling. This modern drill is a high-capacity drill with all the features to be expected on a full-size rig but with the ability to be mobile. This allows for exploration in areas unreachable before by larger rigs that require additional transport to site.

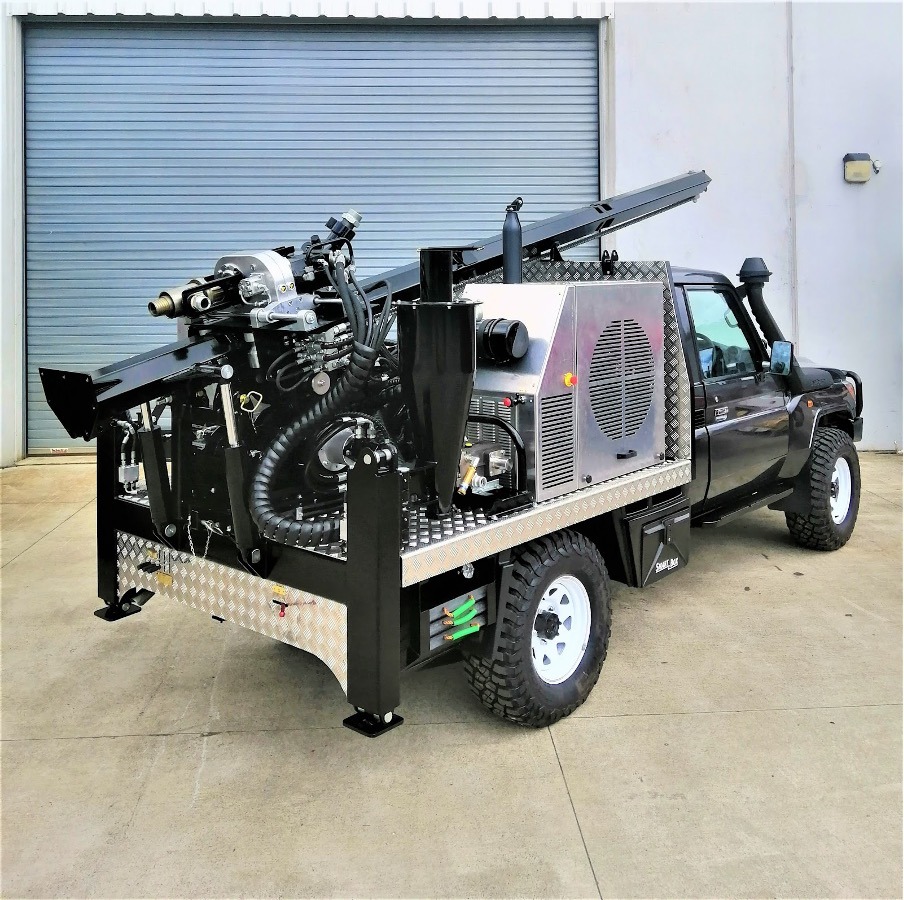

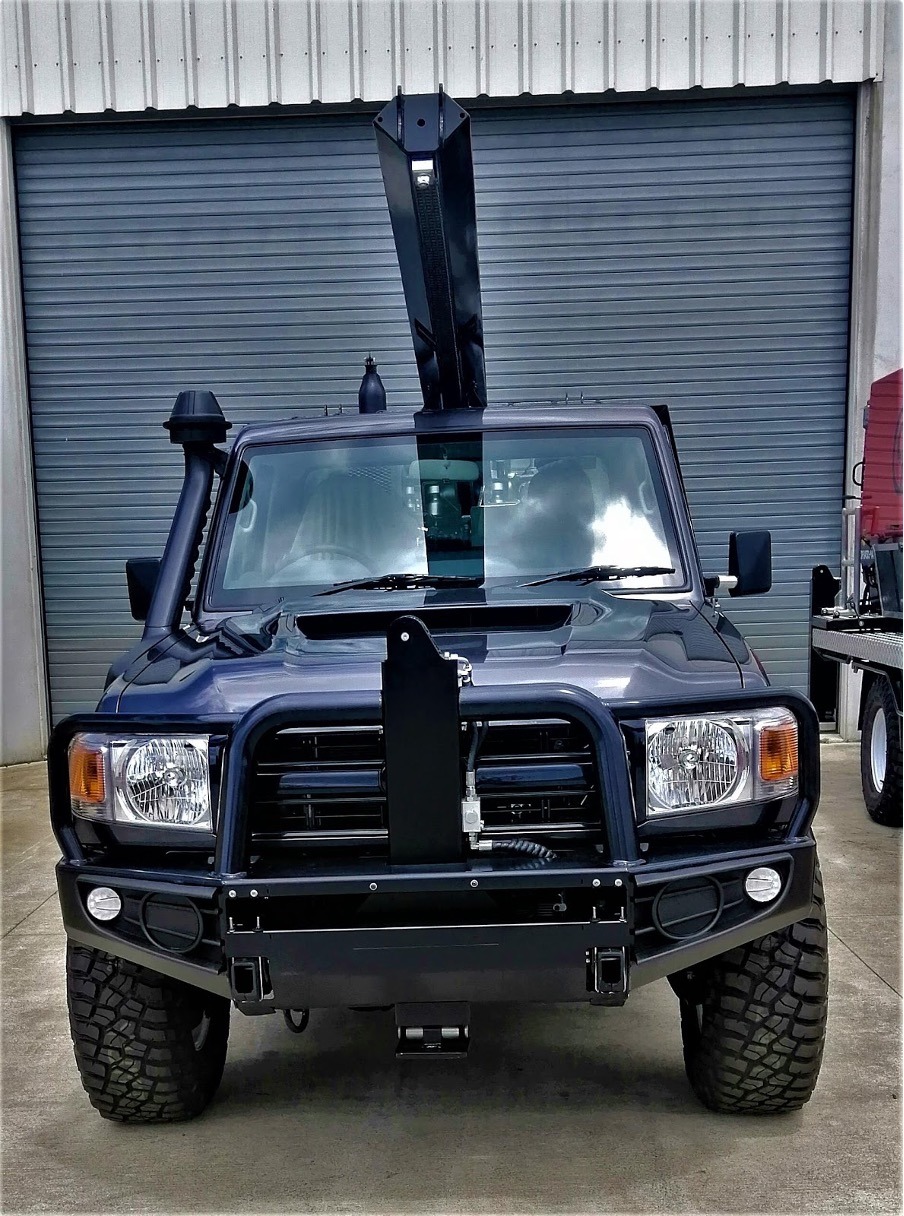

The Land Cruiser is modified, incorporating uprated springs, airbags, and ultra-wide BF Goodrich tires to cope with the extra weight of drilling components and reduce ground pressure.
This rig is perfect for large grid pattern drilling. Outfitted with top-quality components the LT140 is sure to meet your remote drilling expectations. Capable of drilling 220m with N size drill rod and a top drive, side shifting head allowing for easy and fast core retrieval.
| Specification | Metric |
|---|---|
| Height | 6 m |
| Width | 2 m |
| Length | 6 m |
| Total Weight | 4287 kg |
| Depth Capacity | 300 m |
| Pull Rod Length | 3 m |
| Max Torque | 635 Nm |
| Max Speed | 900 RPM |
| Drill Rod Size | B-P |
| Main Hoist hook load bare drum | 2267 kg |
| Feed Stroke | 3.6 m |
Technical Specs
| Drill Rod Size | Hole Depth (Metric) | Hole Depth (U.S.) |
|---|---|---|
| BQ | 300 m | 984 ft |
| NQ | 220 m | 722 ft |
| HQ | 150 m | 492 ft |
| PQ | 80 m | 262.5 ft |
| RC 3" | 140 m | 459 ft |
These figures are based on theoretical calculations and operating capabilities of the components. Theoretical calculations are based on vertical holes, therefore ground conditions & hole angle are some variables that may impact depth targets.
| Specification | Metric | U.S. |
|---|---|---|
| Standard Unit | Kubota V2003-TE Vertical, Water cooled, 4-cycle Diesel | |
| Cylinders | 4 | |
| Displacement | 1999 cc | 121.99 in^3 |
| Power (continuous) | 36.3 kW | 48.6 hp |
| Specification | Metric | U.S. |
|---|---|---|
| Primary Pump | Piston Pump Rexroth | |
| Max Flow @ 2800RPM | 126 L/min | 33.3 gal/min |
| Hydraulic Tank Capacity | 160 L | 42.3 gal |
| Specification | Metric | U.S. |
|---|---|---|
| Feed Stroke | 3.6 m | 11.8 ft |
| Feed Pull | 11,466 N | 2577.6 lbf |
| Feed Thrust | 11,466 N | 2577.6 lbf |
| Rod Pull | 6 m | 19.7 ft |
| Drilling Angle | 90 ° to 45° |
| Variable Speed | Ratio | Speed | Torque (Metric) | Torque (U.S.) |
|---|---|---|---|---|
| LOW | 3.12 : 1 | 550 RPM | 635 Nm | 468 lbf |
| HIGH | 3.12 : 1 | 900 RPM | 350 Nm | 258 lbf |
| Specification | |
|---|---|
| Rotation Motor | Rexroth |
| Final Drive | Straight cut gears |
| Ratio | 3.12 : 1 |
| Head Opener | Hydraulic Side Shift |
| Drill Head Lubrication | Journals and Pumps |
| Floating Spindle |
| Specification | Metric | U.S. |
|---|---|---|
| Main Line Winch | Braden Gearmatic BG6B | |
| Ratio | 67 : 1 | |
| Motor Displacement | 21 cc | 1.28 ci |
| Pressure | 166 bar | 2400 psi |
| Winch Flow | 64.4 lpm | 17 gpm |
| Hook Load (Bare Drum) | 2267 kg | 5000 lbs |
| Hoisting Speed (Bare Drum) | 41.67 m/min | 136.7 ft/min |
| Main Line Winch Cable Dia. | 12 mm | 1/2 in |
| Unit Weight | 70 kg | 155lbs |
| Wireline Winch | Alton Manufacturing | |
| Capacity | 350 m | |
| Hoisting Speed (Bare Drum) | 93.75 m/min | 307.6 ft/min |
| Specification | |
|---|---|
| Hydraulic Style (Dual Cylinder) | P,H,N,B |
| Specification | Metric (kg) | U.S. (lbs) |
|---|---|---|
| R98 Cruiser Deck Frame | 412 | 908 |
| Toyota Single Cab Vehicle + Front Jack | 2250.5 | 4961.5 |
| Under Deck Components | 54.5 | 120 |
| Mast | 195 | 430 |
| Mast Cylinders | 20 | 44 |
| Sheave + Carriage Stop | 33 | 72.8 |
| Drive head Assembly + Cross slide | 93 | 205.1 |
| 4 Cyl Engine Module (wet) | 335 | 738.7 |
| Feed Chain | 14 | 30.9 |
| Spin Guard | 35 | 77.2 |
| Foot Plate | 41 | 90.4 |
| Pivot Frame w/ Wireline and Main | 174 | 383.7 |
| Carriage + Feed motor, GB etc. | 181 | 399.1 |
| Mast stay | 29 (x2) | 63.9 (x2) |
| Foot Clamp | 65 | 143.3 |
| Hydraulic Tank | 173 | 381 |
| Hydraulic Cooler | 14 | 31 |
| Cyclone & Pivot | 40 | 88 |
| Console Pivot | 22 | 49 |
